The SensorPush G1 WiFi Gateway enables you to monitor your SensorPush sensors remotely from anywhere via the Internet.

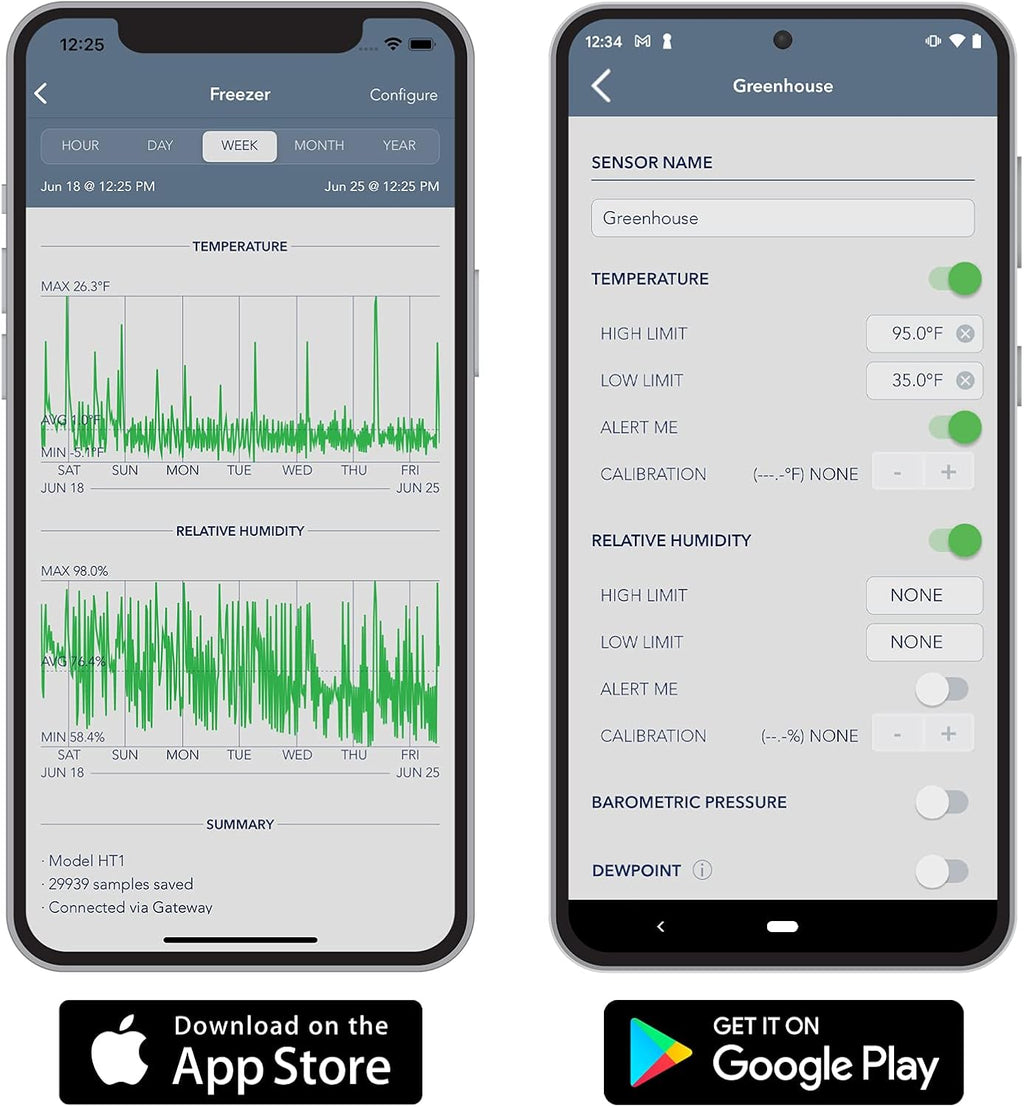

With our included cloud service (no monthly fee), you'll have the full SensorPush experience, accuracy and ease of use, no matter where you are! Receive current conditions, alerts and even the full data history just as if you were monitoring locally.
It's perfect for keeping an eye on conditions at home or at a vacation property while you're away. Make sure your greenhouse, cigars or wine collection is safe while you're at work. Whatever the situation, when you need to monitor environmental conditions from afar, the SensorPush G1 WiFi Gateway has you covered.
| Feature |
Technical Specification |
| Dimensions |
141mm×107mm×20mm (5.6"×4.2"×0.8") |
| Weight |
149g (5.3oz) |
| Power Supply |
DC 5V / 2A (Adapter included: 100-240VAC, 50/60Hz) |
| Wireless Connect |
WiFi 2.4GHz (802.11 b/g/n) |
| Wired Connect |
Ethernet Port (Requires DHCP for auto-configuration) |
| Bluetooth |
Bluetooth LE (for initial pairing and sensor data relay) |
| Range to Sensors |
Up to 100m / 325ft (Line of sight) |
| Sensor Capacity |
No set limit (Monitor unlimited sensors with one gateway) |
| Networking |
Supports Open, WPA/WPA2, and WEP security |
| Outbound Ports |
Port 80, 443, and UDP Port 123 (NTP) |
Dual-Band Connectivity: Ensure your router is set to 2.4GHz or "Dual-Band" mode; the Gateway specifically requires a 2.4GHz frequency to maintain a stable long-range connection.
USB Power Backup: In addition to the included adapter, the Gateway can be powered via its USB port using a standard 5V/2A phone charger if needed.
No Monthly Fees: Purchase of the G1 includes full access to the SensorPush Cloud service and unlimited data history with no ongoing subscription costs.
Encrypted Security: All network connections are fully encrypted, and no incoming ports need to be opened on your router/firewall for the device to function.
What's in the Box

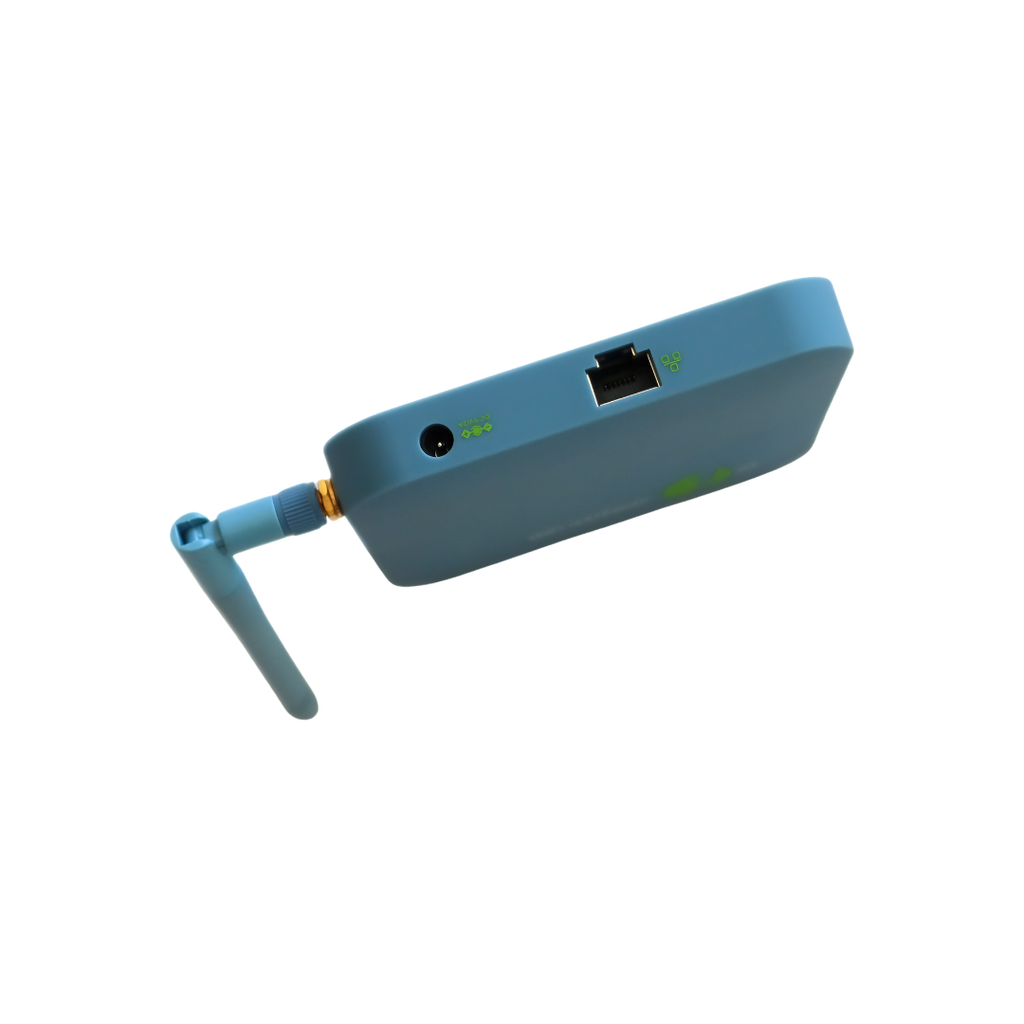

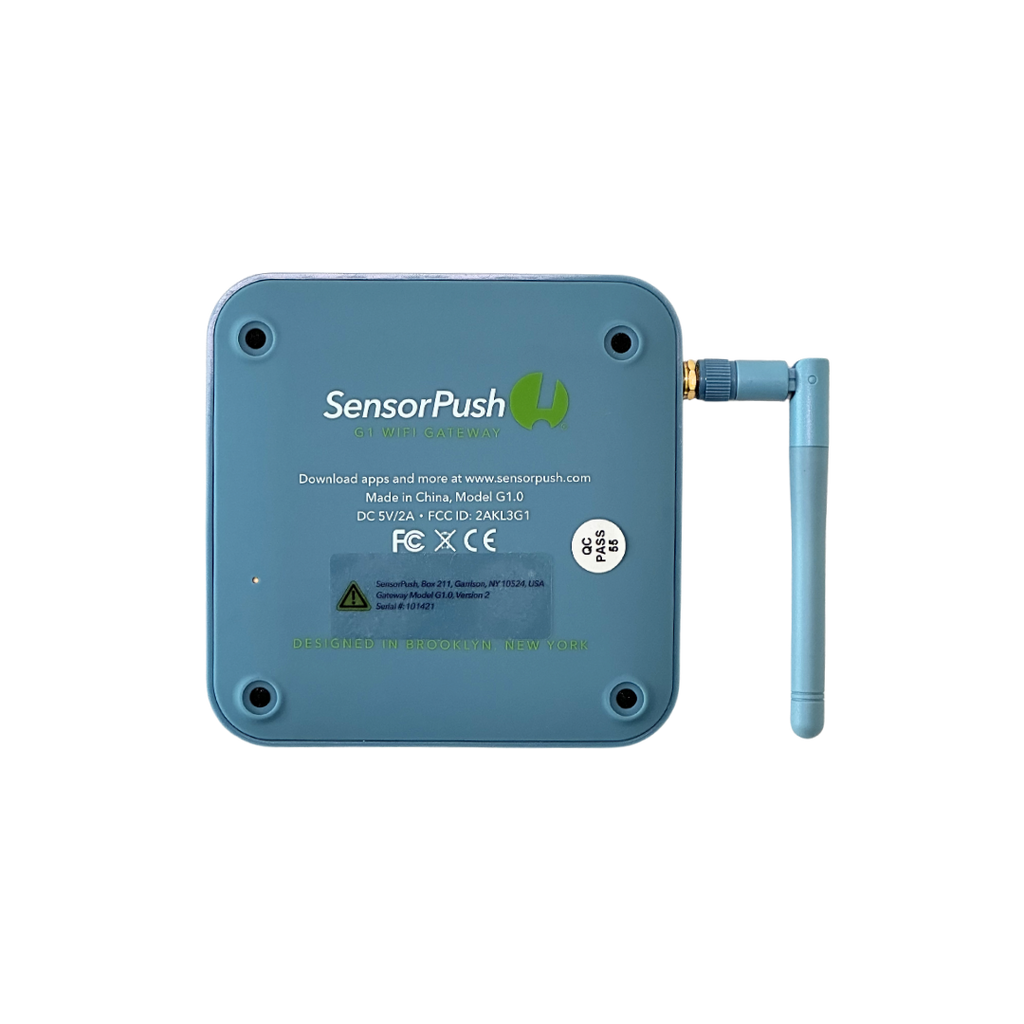

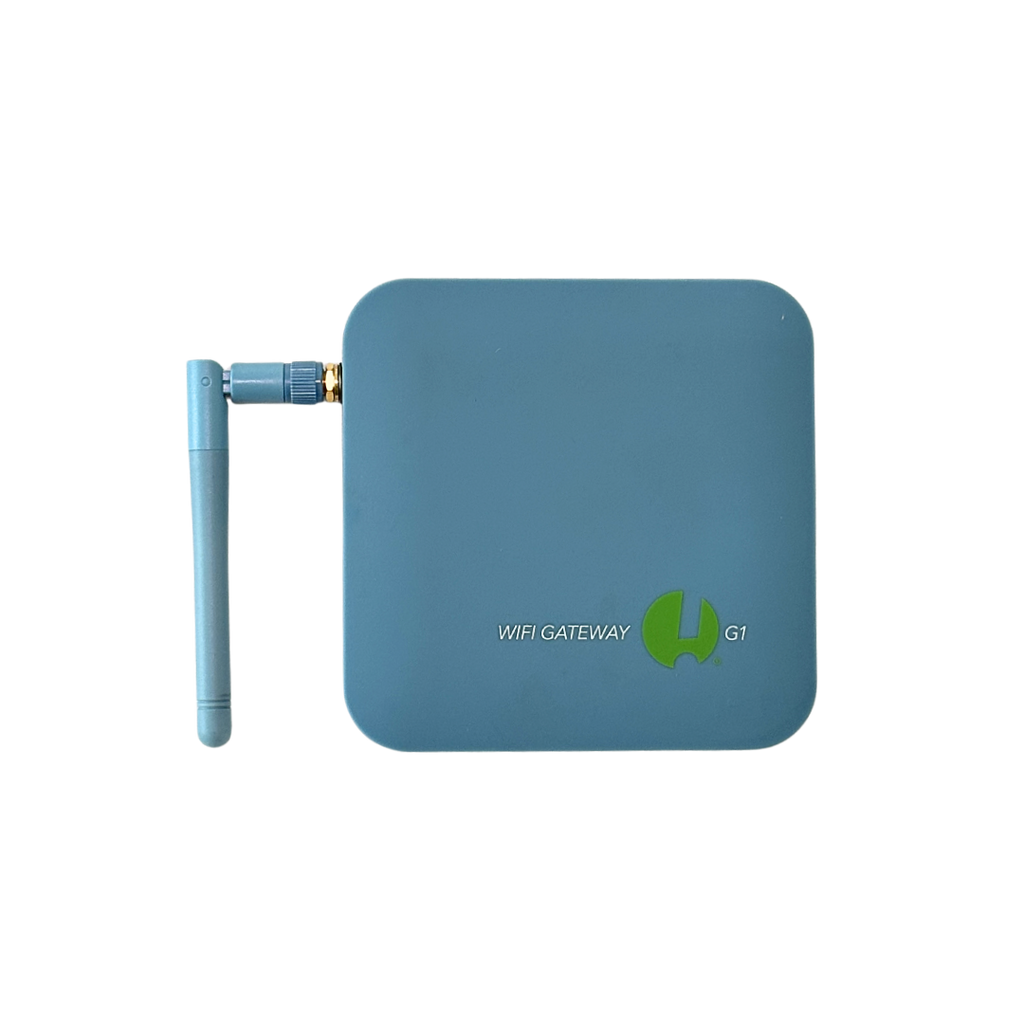

1x SensorPush G1 WiFi Gateway The central hub unit with a flip-up antenna for extended range.
1x Power Adapter A dedicated AC power adapter (100-240V) with a barrel connector to power the device continuously.
1x Quick Start Guide Step-by-step instructions to connect the Gateway to your network (WiFi or Ethernet) and link it to your SensorPush cloud account. (Ethernet cable NOT included)
